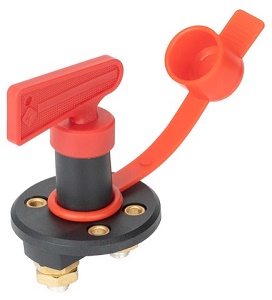

Battery Isolator Switch 300 amp 60 VDC

Product Code: BIS300
Name: Battery Isolator Switch 300 amp 60 VDC
Description: Battery Isolator Switch or Kill Switch
300 amp continuous rating
12-24 VDC, (up to 60v)
Use these to disengage your battery, in racing bikes and cars, trucks, marine, or parking for extended periods
Mounting hole required in panel is 23mm approx
The switch body is 61mm across (diameter)
Total length including posts is 65mm
Height of body above mounting deck is 35mm (including key is 70mm)
Mounting deck is 6mm thick
Mounting holes (4) are 35mm x 21mm apart and 5.3mm diameter approx.
The posts are 9.8mm diameter so you will need 10mm lugs or eyelet terminals
Nuts are 17mm AF
Key shaft is 10.3mm diameter
Key has a hole so you can hang it up or tie it down
Weather proof cap comes with
Spare keys are available too
Category: Battery Isolator
Ordering: Contact Us for price, product or purchase enquiries. Quote the Product Code above.
